Welcome to the Moto-Guzzi Web Site
|
|
Qty. | Price: |
| Gasflow Cylinder Head, guides,cut seats. | Pair | £150 |
| Mk5 fit 49/42 valves,flow,4 guides with Twin plug (10mm) redirect oilways put a shoulder on it 95mm. Lead free Seats |
Pair | £600,+valves |
| MK5-Piston for the above 95mm | Pair | £380 |
| For MK5-set 49/42 of Inlet & Exhaust valves (Four) | Four | £160 |
| Gas flow Cylinder Heads,guides,fit over size valve New inlet & exhaust seats 44/37mm,Lead free seat (T-3 & Square heads). |
Pair | £350,+valves |
| Aluminium bronze valve guide supply,fit,cut seat. | Each | £15 |
| Lead free seat conversion only on MK5/ T-3 heads | Pair | £90 |
| Twin plug, conversion .(T-3 only) | Pair | £90 |
| Twin plug, conversion .(Square heads) Redirect the oil ways | Each | £115 |
| 15deg,re angel ports,gas flow,guides,Lead free seats,in 44mm/ex 37mm.Will take 41mm Del'Ortos (T-3 only) | Pair | £560,+valves |
| (Bell mouth) velocitie stack | Each | £28 |
[ Home Page ] [ E-Mail ] [ Links ]
All the prices in this list are correct at the time of publishing, but we reserve the right to alter prices without notice.
Welcome to the B.M.W. Web Site
The Telelever class R-1100GS & 1200
He has done a few modifications on it,and its looks a beautiful bit of kit.
Far as the cylinder head concern,MEZ have done Triple plug conversion.
Also inlet valve increased to 39mm,and exhaust valve 34mm.
Crank shaft oil ways has been redirected,since played up at DAYTONA 1997.
|
|
Qty. | Price: |
| "R" Gasflow Cylinder Heads,new guides,cut seats. | Pair | £220 |
"R" Gasflow Cylinder Heads,new guides,over size valve seats 38/32.
|
Pair +valves |
£380 |
| "R" Twin plug, conversion (extra four )...Look at the pictures .
|
Pair | £190 |
| "R" Reclaim damaged combustion chamber new seat,guide,weld re profile etc. | Each | £P.O.A. |
| "R" Aluminium bronze valve guide supply,fit,cut seat. | Each | £15 |
| "K" Gasflow Cylinder Head. cut seats K-1100/K1200RS | Pair | £290 |
Pictures by Chris De Beer.
Welcome to the Monolever class Web Site
|
|
Qty. | Price: |
| Gasflow Cylinder Heads, guides,cut seats. | Pair | £150 |
| Gasflow Cylinder Heads, guides,new Lead free seat seats. | Pair | £220 |
| Gasflow Cylinder Heads, guides, Lead free seat seats.Twin plug, conversion. | Pair | £280 |
| Reclaim damaged combustion chamber seat,guide,weld re profile etc. | Each | £P.O.A. |
| Aluminium bronze valve guide supply,fit,cut seat.(Exhaust Guide last 20K,Inlet 30K!!) | Each | £13 or £48 for 4 |
| Over Size Inlet & Exhaust Valves seat eg: 38/34,40/38,42/40,44/40mm. | Each | £40 |
| Twin plug, conversion only. | Pair | £70 |
| Lead free seat conversion ,(only exhaust have to be done) | Pair | £80 |
| Exhaust thread reclaim...Exhaust Thread | each | £48 |
Welcome to the Mono Cylinder Class Web Site
|
|
Qty. | Price: |
| Gasflow Cylinder Head,(STD Valves 36/31mm)new guides,cut seats. | Each | £150 |
| Gasflow Cylinder Head,new guides,over size valve (seats) 39/34 mm.
|
Each | £260+valves |
| Aluminium bronze valve guide supply,fit,cut seat. | Each | £15 |
| Ducati Super Mono Gasflow,guides, oversize valves 39/32 | each | £400 +Valves |
[ Home Page ] [ E-Mail ] [ Links ]
All the prices in this list are correct at the time of publishing, but we reserve the right to alter prices without notice.
Welcome to the Race developed Single CylinderWeb Site
|
|
Qty. | Price: |
| B.M.W.Gasflow F-650cc (STD Valves 36/31mm) new guides,cut seats. | each | £150 |
| B.M.W.Gasflow Cylinder Head,new guides,over size valve (seats) 39/34 mm.
|
+valves | £260 |
| B.M.W.Aluminium bronze valve guide supply,fit,cut seat. | each | £15 |
| B.M.W.Inlet Valve,and Exhaust valve. | each | £35 |
| BSA Single 350cc STD Valves gas-flow change all seats and guides | plus valves | £195 |
| BSA Single 350cc 44/37mm re angel inlet track gas-flow | plus valves | £580 |
| BSA Single 500cc STD Valves gas-flow change all seats and guides | plus valves | £200 |
| BSA Single 500cc 47/40 Valves gas-flow change all seats and guides | plus valves | £280 |
| Ducati Single 250/350/450 Gasflow,new guides,(STD Valves 40/36mm) | + Valves | £115 |
| Ducati Single 250 Gasflow,new guides,(Over Size Valve 42/36mm) | + Valves | £130 |
| Ducati Single 250/350 Gasflow,new guides,Over size Valve using 43/37mm | + Valves | £175 |
| Ducati Single Inlet Valve,and Exhaust valve 41/36,43/36,43/37mm | each | £25 |
| Ducati Single Twin plug conversion. | each | £38 |
| Ducati Single Inlet and Exhaust guide supply,fit and cut seats. | each | £15 |
| Ducati Single Inlet and Exhaust guide supply,YOU fit and cut seats. | each | £10 |
| Ducati Single Exhaust thread reclaim 250/350/450. | each | £39 |
| Ducati Single Lead free seat conversion only | each | £40 |

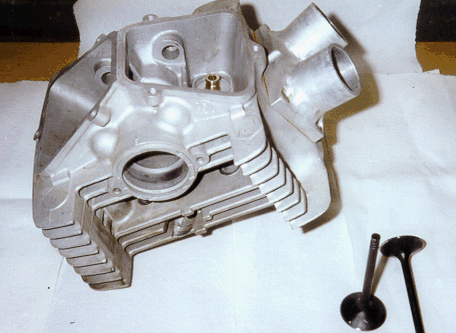

| Rotex Single Re angle ports for 38mm,inlet 37.5 exhaust 32mm and guides. | Each | £660 |
| Rotex Single Gasflow Cylinder Head,new guides,cut seats. | Each | £225. |
| Rotex Single Head convert to inlet 37.5 exhaust 32mm and guides. | Each | £250 |
| Rotex Single Over size inlet valve 37.5mm & Exhaust 32mm | Each | £25 |
| Rotex Single Aluminium bronze valve guide supply,fit,cut seats . | Four | £44 |
| Rotex Single Twin plug conversion (Yes extra "Two Plug") | Each | £65 |
| Yamaha Single Five Valve Gas flow,weld water jakets etc. | plus manifold | £350 |
All the prices in this list are correct at the
time of publishing, but we reserve the right to alter prices without notice.
[ Home Page ]
[ E-Mail ]
[ Links ]
Start from the bottom! the crank is a work of art a perfectly crafted,
press up ,needle roller job with slim steel flywheels.
This push a Arias forged ,big bore ,squish piston via the Carillo rod.
The crank:rod ratio is dow from 2.6:1 to 2:1 by means of a shorter stroke.
Practically square at 76.5x76,=349cc long long way from stock Goldie 71x88mm.
Only problem you can not over bore it.If it get damage He will have to change liner every time
"So what" He said, My wife looks after the purse.
Cams are stock Gold Star!"BSA's original profile is difficult to improve.
"The inlet valve are central,the inlet track on the Gold Star is one side to the head and to mount a enormous carb in that position result in the instrument fouling the rider's leg. To overcome this George at Mez Porting cut away the manifold stub,welded up the hole and rewelded a down-draught stub central over the valve.
